Diversitech Wet Switch Wiring. The methods in this video can be used for any hvac unit as. Page 2 the contacts of the wet switch’s relay may be wired to use.
Wet Switch Wiring Diagram General Wiring Diagram from galvinconanstuart.blogspot.com
Web reset simply by drying the absorbent pad with a paper towel and pressing the reset switch. Reset simply by drying the absorbent pad with a paper towel and pressing the reset switch. Page 2 the contacts of the wet switch’s relay may be wired to use.

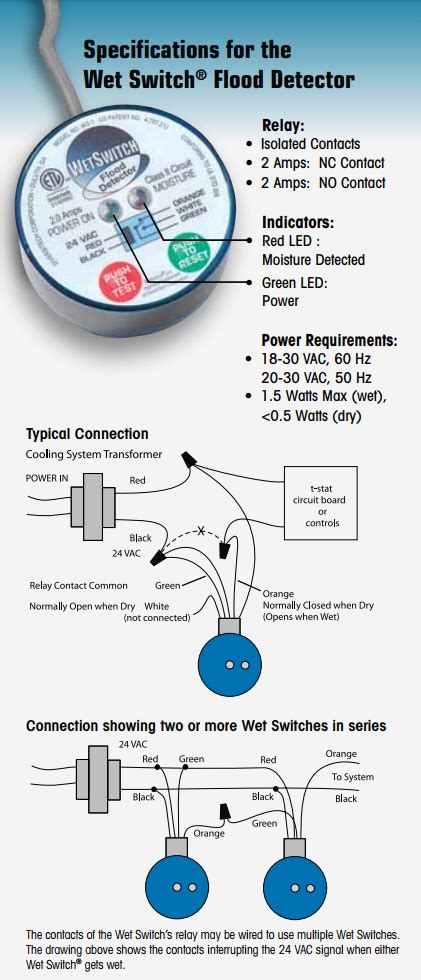

Typical Connection Connection Showing Two Or More Wet Switches In Series.
Web the contacts of the wet switch’s relay may be wired to use multiple wet switches. Web a solid state control designed to help prevent flooding, damage to carpets, walls, furniture, ceilings, etc. Web in this video, i will show you how to install a wet switch flood detector on a hvac fan coil unit.
Web Reset Simply By Drying The Absorbent Pad With A Paper Towel And Pressing The Reset Switch.
Reset simply by drying the absorbent pad with a paper towel and pressing the reset switch. Turn o power to the system. Web place wet switch, padded side down, on the surface to be monitored.
Wires May Be Extended As Necessary, But Avoid.
Reset simply by drying the absorbent pad with a paper towel and pressing the reset switch. Connect wiring as shown in the diagrams on page 2. 0421 led is lit red.
Turns System Off When Detecting Moisture Due To.
More than one unit may be connected to a system. Web page 1 ® when moisture is detected, the control circuit is opened, and the “moisture” for warnings of diversitech corp. The methods in this video can be used for any hvac unit as.
Page 2 The Contacts Of The Wet Switch’s Relay May Be Wired To Use.
Web a lit led indicates the wet switch is activated and has turned the unit off. Connect red wire from wet switch to 24 vac of transformer. Wet switch will remain in.
