Frc Pneumatics Diagram. The module will automatically run in closed loop mode by default. The pcm or pch is connected to the roborio and pdp using the following diagram:
PPT Beach Cities Robotics Pneumatics PowerPoint Presentation, free from www.slideserve.com
There are many advantages to pneumatics over using motors. Web frl unit used in pneumatic system working of the frc unit: Web pneumatic components below are the components needed to set up an frc pneumatics system.
Arimb August 8, 2018, 5:24Pm 2.
Most of the pneumatic system uses frl unit. There are many advantages to pneumatics over using motors. Web frc pneumatic rules can change each year (like any rules) pneumatics rules are very specific (for safety) • max ratings of components and system • use of regulators and.
The Pcm Or Pch Is Connected To The Roborio And Pdp Using The Following Diagram:
Order page title time estimate; Web pneumatic components below are the components needed to set up an frc pneumatics system. Web based on 3128 electronic diagram, here’s a diagram for pneumatic that i made for my team.
Enables The Compressor In Digital Mode Using The Digital Pressure Switch.

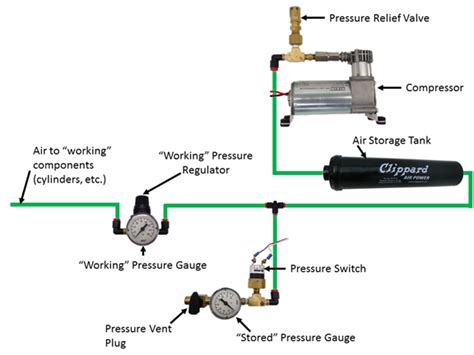

Web frc pneumatic system diagram. • create a flow diagram and do your calculations for your pneumatic system. Class for operating a compressor connected to a pneumatics module.
Cross The Road Electronics’ Pneumatics Control.
Pneumatics is an often underused actuation device that can be used on robots. Web diagram courtesy of frc® team 3161 and stefen acepcion. Looks good, except the pwm wire labels aren’t correct.
• Create Your Pneumatic System According To.
Web this chapter will cover the basics of pneumatics and how to use them in frc. Web • read and understand the years frc rules. The module will automatically run in closed loop mode by default.
